BSC076N06NS3 G - Infineon

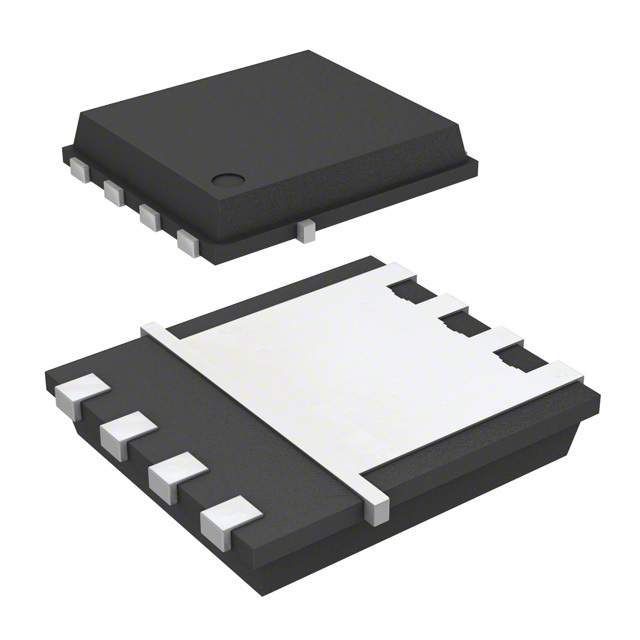

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSC076N06NS3 G
Manufacturer

Infineon
ChipWorker Part#

CW53842839
Category

MOSFET, MOSFET Transistor
Package

TDSON-8
Description

Trans MOSFET N-CH 60V 50A 8Pin TDSON EP
Documentation

Datasheet

BSC076N06NS3 G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSC076N06NS3 G Specifications

Attribute	Attribute Value

Part Number	BSC076N06NS3 G
Manufacturer	Infineon
ChipWorker Part#	CW53842839
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TDSON-8
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0062 Ω
Polarity	N-Channel
Power Dissipation	69 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	60 V
Rise Time	40 ns
Input Capacitance (Ciss)	4000pF @30V(Vds)
Input Power (Max)	69 W
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2500 mW
	expand all
Size-Length	5.9 mm
Size-Width	5.15 mm
Size-Height	1.27 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
Excellent gate charge x R DS(on) product (FOM)
Very low on-resistance R DS(on)
Ideal for fast switching applications
RoHS compliant - halogen free
MSL1 rated
Benefits:
Highest system efficiency
Less paralleling required
Increased power density
System cost reduction
Very low voltage overshoot
