BSC109N10NS3GATMA1 - Infineon

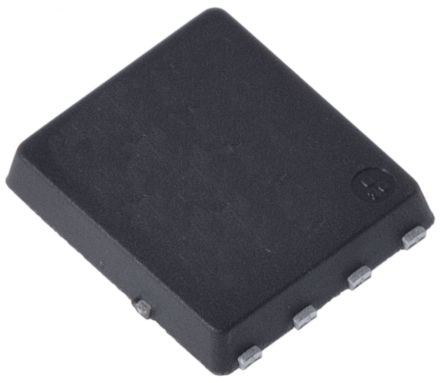

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSC109N10NS3GATMA1
Manufacturer

Infineon
ChipWorker Part#

CW9379496
Category

MOSFET, MOSFET Transistor
Package

PG-TDSON-8
Description

TDSON N-CH 100V 63A
Documentation

Datasheet

BSC109N10NS3GATMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSC109N10NS3GATMA1 Specifications

Attribute	Attribute Value

Part Number	BSC109N10NS3GATMA1
Manufacturer	Infineon
ChipWorker Part#	CW9379496
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-TDSON-8
Power Rating	78 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0098 Ω
Polarity	N-Channel
Power Dissipation	78 W
Threshold Voltage	2.7 V
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	63A
Rise Time	7 ns
Input Capacitance (Ciss)	1900pF @50V(Vds)
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	78W (Tc)
	expand all
Size-Length	6.1 mm
Size-Width	5.35 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Summary of Features:
Excellent switching performance
World’s lowest R DS(on)
Very low Q g and Q gd
Excellent gate charge x R DS(on) product (FOM)
RoHS compliant-halogen free
MSL1 rated 2
Benefits:
Environmentally friendly
Increased efficiency
Highest power density
Less paralleling required
Smallest board-space consumption
Easy-to-design products
