BSL207SP - Infineon

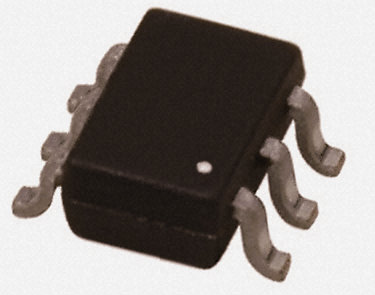

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSL207SP
Manufacturer

Infineon
ChipWorker Part#

CW88477033
Category

MOSFET, MOSFET Transistor
Package

TSOP-6-6
Description

TSOP P-CH 20V 6A
Documentation

Datasheet

BSL207SP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSL207SP Specifications

Attribute	Attribute Value

Part Number	BSL207SP
Manufacturer	Infineon
ChipWorker Part#	CW88477033
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-6-6
Voltage Rating (DC)	-20.0 V
Current Rating	-6.00 A
Polarity	P-CH
Power Dissipation	2W (Ta)
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	6.00 A
Rise Time	17 ns
Input Capacitance (Ciss)	1007pF @15V(Vds)
Input Power (Max)	2 W
Fall Time	53 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2W (Ta)
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Summary of Features:
Enhancement mode
Avalanche rated
Pb-free lead plating; RoHS compliant
Small Signal packages approved to AEC Q101
