BSL306NH6327XTSA1 - Infineon

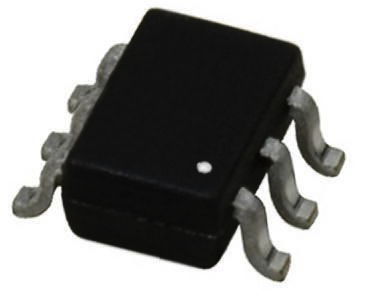

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSL306NH6327XTSA1
Manufacturer

Infineon
ChipWorker Part#

CW12906484
Category

MOSFET, MOSFET Transistor
Package

TSOT-23-6
Description

N-CH 30V 2.3A
Documentation

Datasheet

BSL306NH6327XTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSL306NH6327XTSA1 Specifications

Attribute	Attribute Value

Part Number	BSL306NH6327XTSA1
Manufacturer	Infineon
ChipWorker Part#	CW12906484
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Power Rating	500 mW
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.043 Ω
Polarity	N-CH
Power Dissipation	500 mW
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.3A
Rise Time	2.3 ns
Input Capacitance (Ciss)	275pF @15V(Vds)
Input Power (Max)	500 mW
Fall Time	1.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Summary of Features:
Enhancement mode
Avalanche rated
Pb-free lead plating; RoHS compliant
Qualified according to AEC Q101
