BSL308CH6327XTSA1 - Infineon

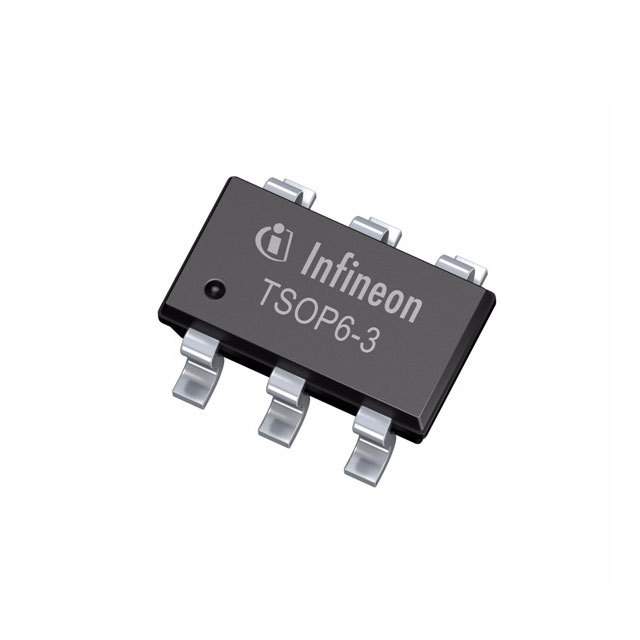

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSL308CH6327XTSA1
Manufacturer

Infineon
ChipWorker Part#

CW15860853
Category

MOSFET, MOSFET Transistor
Package

TSOP-6-6
Description

TSOP N+P 30V 2.3A/2A
Documentation

Datasheet

BSL308CH6327XTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSL308CH6327XTSA1 Specifications

Attribute	Attribute Value

Part Number	BSL308CH6327XTSA1
Manufacturer	Infineon
ChipWorker Part#	CW15860853
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-6-6
Power Rating	0.5 W
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.044 Ω
Polarity	N+P
Power Dissipation	0.5 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.3A/2A
Input Capacitance (Ciss)	275pF @15V(Vds)
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Summary of Features:
Complementary p- + n-channel
Enhancement mode
Avalanche rated
Qualified according to AEC Q101
100% lead-free; RoHS compliant
