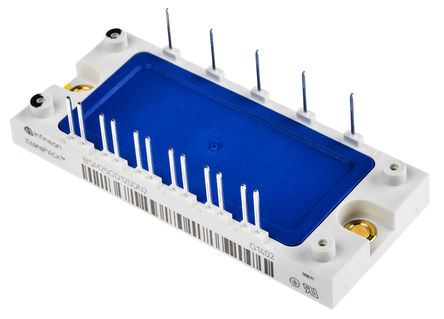

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSM25GD120DN2
Manufacturer

Infineon
ChipWorker Part#

CW74470975
Category

IGBT Transistor, IGBT Module
Package

EconoPACK
Description

Trans IGBT Module N-CH 1200V 35A 200000mW 17Pin EconoPACK 2A
Documentation

Datasheet

BSM25GD120DN2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSM25GD120DN2 Specifications

Attribute	Attribute Value

Part Number	BSM25GD120DN2
Manufacturer	Infineon
ChipWorker Part#	CW74470975
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	17 Pin
Case/Package	EconoPACK
Number of Positions	17 Position
Polarity	N-Channel
Power Dissipation	200 W
Operating Temperature (Max)	125 ℃
Power Dissipation (Max)	200 W
	expand all
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BSM25GD120DN2 is an IGBT Power Module with fast free wheel diodes and insulated metal base plate.
3-phase Full bridge
130ns Rise time
100ns Fall time
±20V Gate-emitter voltage
