BSP129 - Infineon

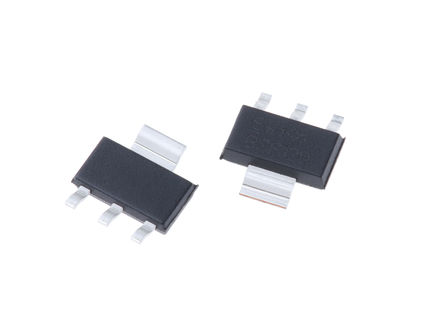

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSP129
Manufacturer

Infineon
ChipWorker Part#

CW54867746
Category

MOSFET, MOSFET Transistor
Package

SOT-223
Description

MOSFET Transistor, N Channel, 120mA, 240V, 20Ω, 10V, -1.4V
Documentation

Datasheet

BSP129 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSP129 Specifications

Attribute	Attribute Value

Part Number	BSP129
Manufacturer	Infineon
ChipWorker Part#	CW54867746
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	20 Ω
Polarity	N-Channel
Power Dissipation	1.7 W
Threshold Voltage	1.4 V
Drain to Source Voltage (Vds)	240 V
Continuous Drain Current (Ids)	120 mA
Rise Time	4.1 ns
Input Capacitance (Ciss)	82pF @25V(Vds)
Fall Time	4.1 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	1.8 W
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The BSP129 is a SIPMOS® N-channel depletion mode Small Signal Transistor with one single component it is possible to realize a simple current regulator. Areas of application include power supply start-up power, overvoltage protection, in-rush-current limiter and off-line voltage reference.
dv/dt rated
AEC-Q101 Qualified
Halogen-free
