BSS126H6327XTSA2 - Infineon

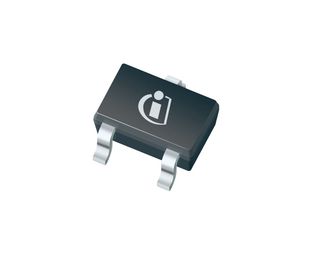

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSS126H6327XTSA2
Manufacturer

Infineon
ChipWorker Part#

CW961900
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

SOT-23 N-CH 600V 0.021A
Documentation

Datasheet

BSS126H6327XTSA2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSS126H6327XTSA2 Specifications

Attribute	Attribute Value

Part Number	BSS126H6327XTSA2
Manufacturer	Infineon
ChipWorker Part#	CW961900
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Power Rating	0.5 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	280 Ω
Polarity	N-Channel
Power Dissipation	500 mW
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	0.021A
Rise Time	9.7 ns
Maximum Forward Voltage (Max)	1.2 V
Input Capacitance (Ciss)	28pF @25V(Vds)
Input Power (Max)	500 mW
Fall Time	115 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BSS126 H6327 is a N-channel depletion-mode SIPMOS® Small-Signal-Transistor with 600VDS drain source voltage. Areas of application include power supply start-up power, overvoltage protection, in-rush-current limiter, off-line voltage reference. Also suitable for automotive applications.
dV/dt rated
Pb-free lead plating
Qualified according to AEC Q101
Halogen-free
