BSZ105N04NSG - Infineon

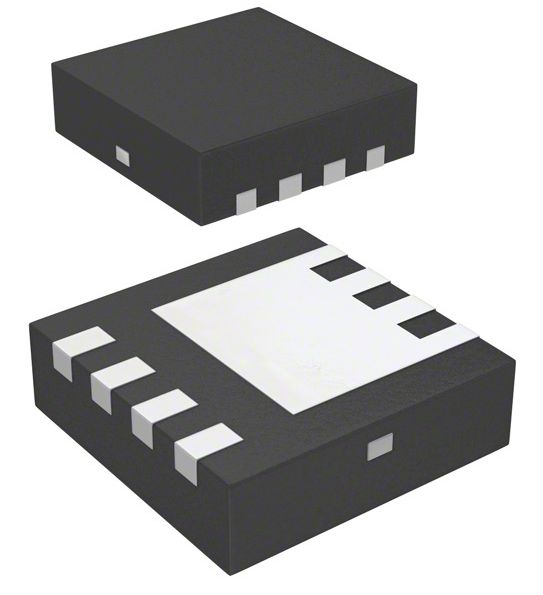

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSZ105N04NSG
Manufacturer

Infineon
ChipWorker Part#

CW429251176
Category

MOSFET, MOSFET Transistor
Package

-
Description

Trans MOSFET N-CH 40V 11A 8Pin TSDSON T/R
Documentation

Datasheet

BSZ105N04NSG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSZ105N04NSG Specifications

Attribute	Attribute Value

Part Number	BSZ105N04NSG
Manufacturer	Infineon
ChipWorker Part#	CW429251176
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	-
Polarity	N-Channel
Power Dissipation	35.0 W
Rise Time	1.2 ns
Fall Time	2.6 ns
	expand all
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	End of Life
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

Mosfet Array
