BTS3134D - Infineon

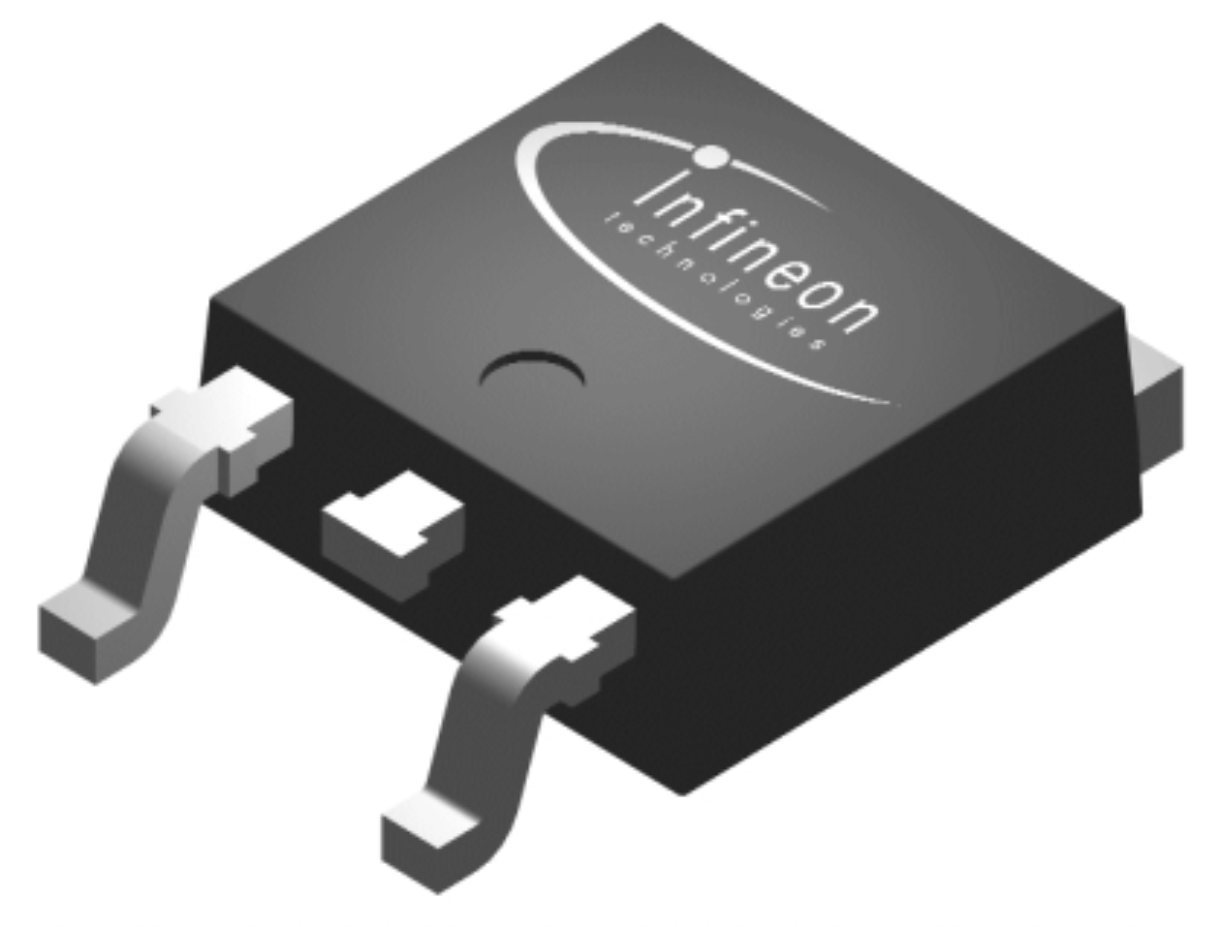

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS3134D
Manufacturer

Infineon
ChipWorker Part#

CW14460007
Category

Power Management IC
Package

TO-252-3
Description

**LSS 50mOhm 42V TO252-3 SMD **
Documentation

Datasheet

BTS3134D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS3134D Specifications

Attribute	Attribute Value

Part Number	BTS3134D
Manufacturer	Infineon
ChipWorker Part#	CW14460007
Category	Power Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Input Voltage (DC)	42.0 V
Output Voltage	42 V
Output Current	3.5 A
Number of Channels	1 Channel
Number of Positions	3 Position
Power Dissipation	43000 mW
Output Current (Max)	3.5 A
Output Current (Min)	3.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	43000 mW
Supply Voltage	2.2V ~ 10V
Input Voltage	42 V
	expand all
Size-Length	6.5 mm
Size-Width	7.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
Logic Level Input
Input Protection (ESD)
Thermal shutdown with latch
Green product (RoHS compliant)
Overload protection
Short circuit protection
Overvoltage protection
Current limitation
Analog driving possible
