BTS4142NHUMA1 - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS4142NHUMA1
Manufacturer

Infineon
ChipWorker Part#

CW7486393
Category

Power Distribution
Package

TO-261-4
Description

Power Switch Hi Side 1Out 1.4A 0.15Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Documentation

Datasheet

BTS4142NHUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS4142NHUMA1 Specifications

Attribute	Attribute Value

Part Number	BTS4142NHUMA1
Manufacturer	Infineon
ChipWorker Part#	CW7486393
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Current	1.4 A
Supply Current	1 mA
Number of Positions	4 Position
Power Dissipation	1.4 W
Output Current (Max)	1.4 A
Output Current (Min)	1.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1400 mW
Supply Voltage	12V ~ 45V
Supply Voltage (Max)	45 V
Supply Voltage (Min)	12 V
Input Voltage	48 V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

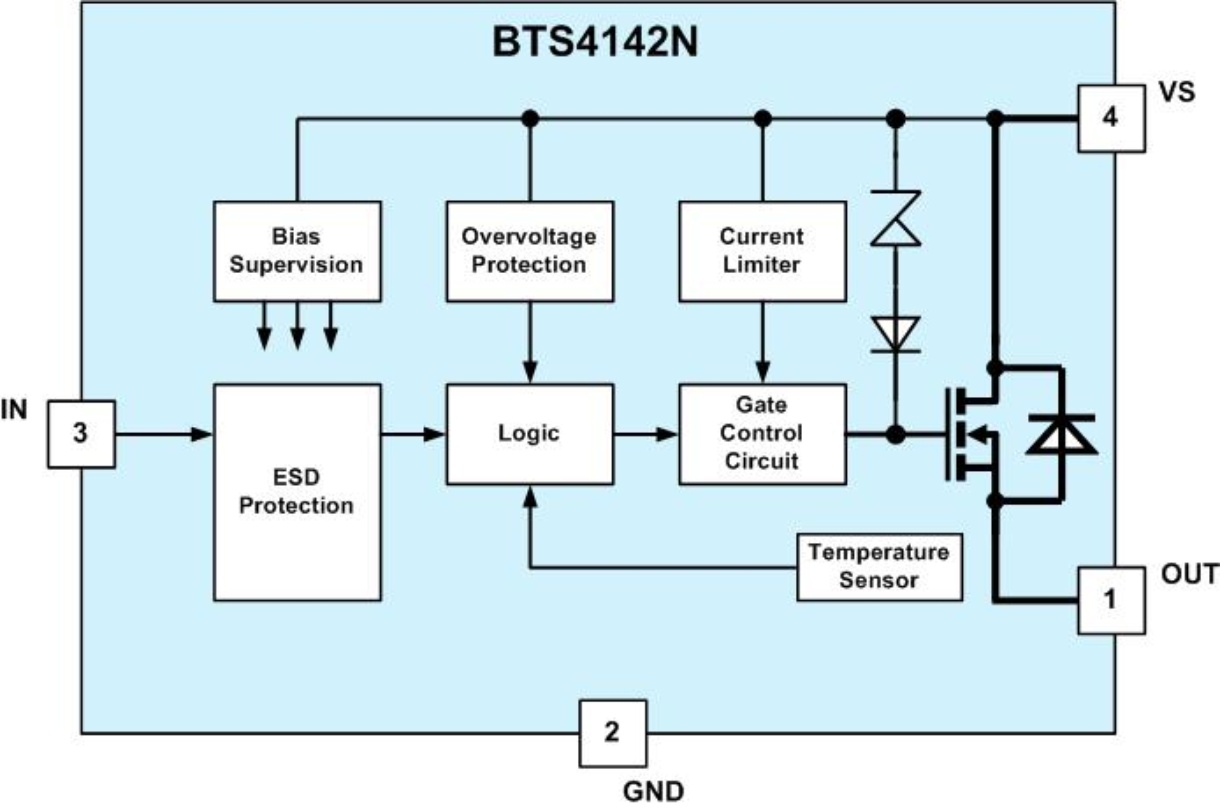

The BTS4142N is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. N-channel vertical power FET with charge pump, ground reference CMOS compatible input, monolithically integrated in Smart SIPMOS® technology. Providing embedded protective functions.
Overload protection
Thermal shutdown with restart
Overvoltage protection
Under voltage shutdown with auto restart and hysteresis
Switching inductive load
Clamp of negative output voltage with inductive loads
Thermal shutdown with restart
Loss GND and loss Vbb protection
Very low stand by current
Reverse battery protection with external resistor
Improved electromagnetic compatibility(EMC)
ESD sensitive device, take proper precaution while handling the device.
