BTS452T - Infineon

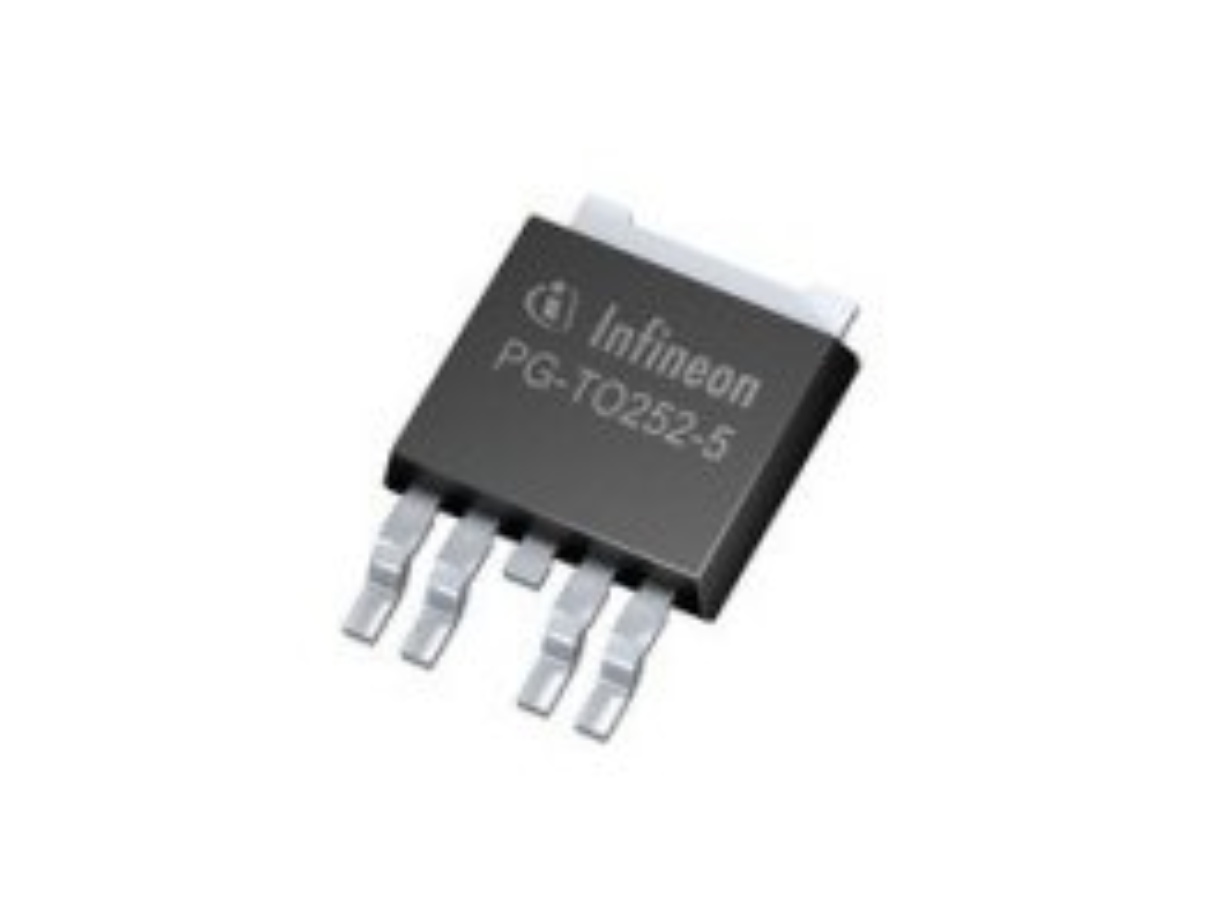

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS452T
Manufacturer

Infineon
ChipWorker Part#

CW10299873
Category

Power Management IC
Package

TO-252-5
Description

Buffer/Inverter Based Peripheral Driver, 1 Driver, 2.2A, MOS, PSSO4, PLASTIC, TO-252, 5Pin
Documentation

Datasheet

BTS452T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS452T Specifications

Attribute	Attribute Value

Part Number	BTS452T
Manufacturer	Infineon
ChipWorker Part#	CW10299873
Category	Power Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Input Voltage (DC)	62.0 V
Output Current	1.8 A
Supply Current	0.8 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	41.6 W
Output Current (Max)	1.8 A
Output Current (Min)	1.8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	41600 mW
Supply Voltage	6.52 VDC
Supply Voltage (Max)	52 V
Supply Voltage (Min)	6 V
Input Voltage	62 V
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The BTS452T is a high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection (including load dump)
Shutdown when undervoltage
Fast demagnetization of inductive loads
Reverse battery protection with external resistor
CMOS compatible input
Electrostatic discharge (ESD) protection
Very low standby current
Green product
Negative voltage clamped at output with inductive loads
