BTS5240L - Infineon

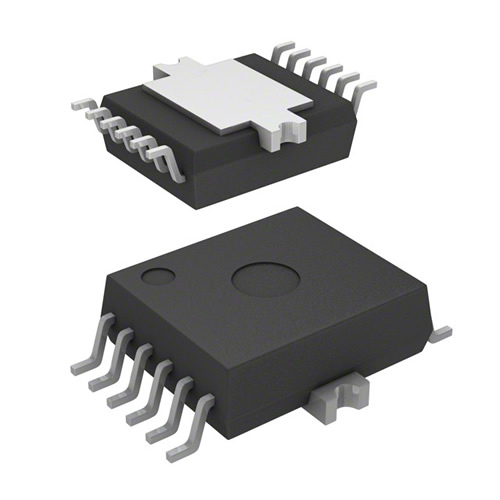

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS5240L
Manufacturer

Infineon
ChipWorker Part#

CW113324482
Category

FET Driver
Package

DSO-14
Description

Smart High Side Switches \\- 4,5-28V(40V Loaddump), 2x25m, Limit(scr) 10A/40A P-DSO-12
Documentation

Datasheet

BTS5240L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS5240L Specifications

Attribute	Attribute Value

Part Number	BTS5240L
Manufacturer	Infineon
ChipWorker Part#	CW113324482
Category	FET Driver
Documentation	Datasheet
Number of Pins	12 Pin
Case/Package	DSO-14
Number of Outputs	2 Output
Power Dissipation	1400 mW
Output Current (Max)	5.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 28V
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	End of Life
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
