BTS640S2GATMA1 - Infineon

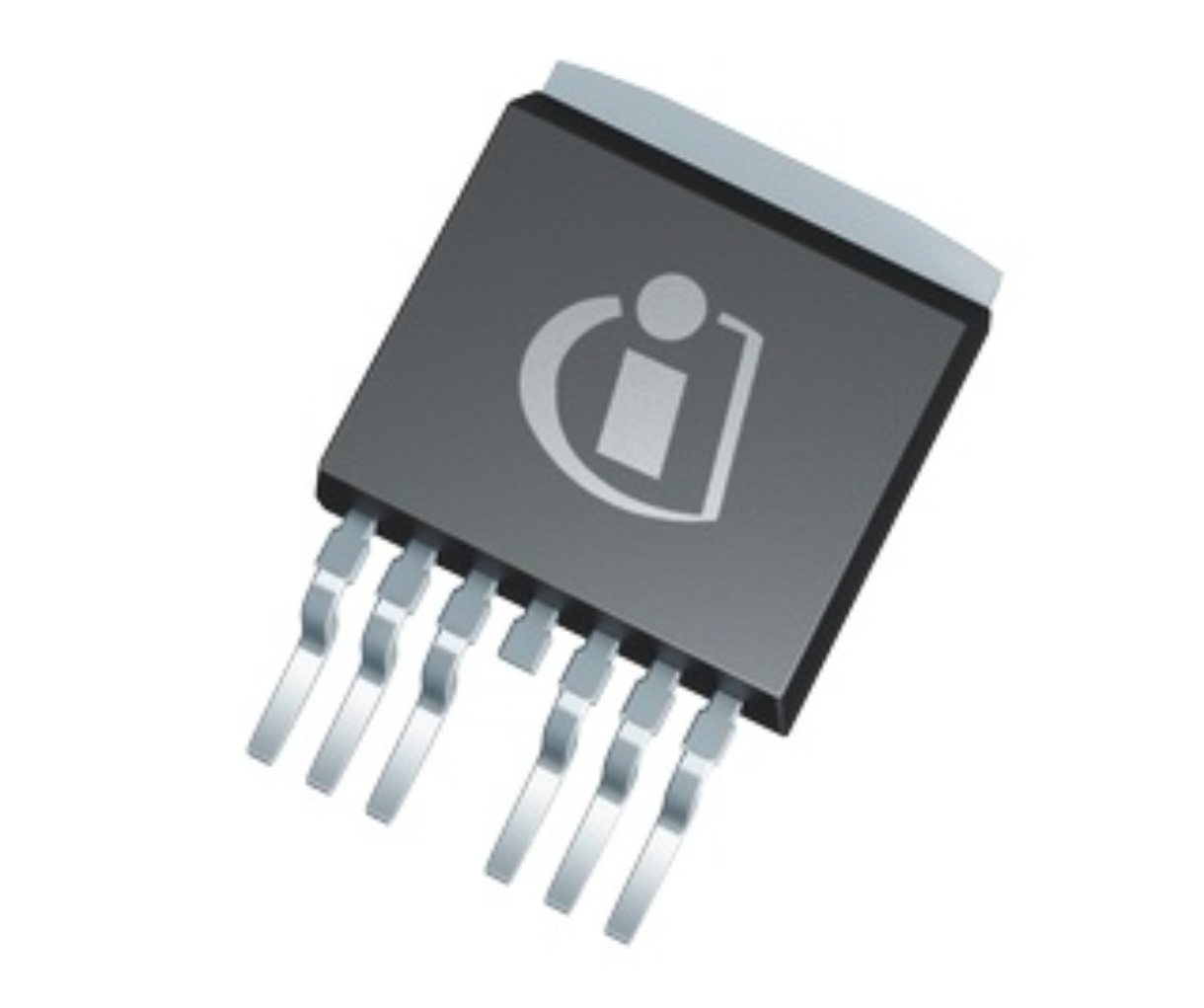

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTS640S2GATMA1
Manufacturer

Infineon
ChipWorker Part#

CW22672417
Category

Power Distribution
Package

TO-263-7
Description

Power Switch Hi Side 1Out 4A 0.027Ω Automotive 7Pin(6+Tab) TO-263 T/R
Documentation

Datasheet

BTS640S2GATMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTS640S2GATMA1 Specifications

Attribute	Attribute Value

Part Number	BTS640S2GATMA1
Manufacturer	Infineon
ChipWorker Part#	CW22672417
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Number of Outputs	1 Output
Output Current	4 A
Supply Current	1.2 mA
Number of Positions	7 Position
Power Dissipation	85 W
Output Current (Max)	11.4 A
Output Current (Min)	4 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	85000 mW
Supply Voltage (Max)	34 V
Supply Voltage (Min)	5 V
Input Voltage	34 V
	expand all
Size-Length	9.9 mm
Size-Width	9.2 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The BTS640S2G is a N-channel high-side vertical Power FET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback and proportional sense of load current, monolithically integrated in smart SIPMOS® technology. It provides embedded protective functions, under-voltage and overvoltage shutdown with auto-restart and hysteresis.
Short-circuit protection
Current limitation
Proportional load current sense
CMOS compatible input
Open drain diagnostic output
Fast demagnetization of inductive loads
Overload protection
Thermal shutdown
Overvoltage protection including load dump
Reverse battery protection
Loss of ground and loss of VBB protection
Electrostatic discharge (ESD) protection
High voltage capability
Benchmark energy robustness
ESD sensitive device, take proper precaution while handling the device.
