BZG03C15G - ON Semiconductor

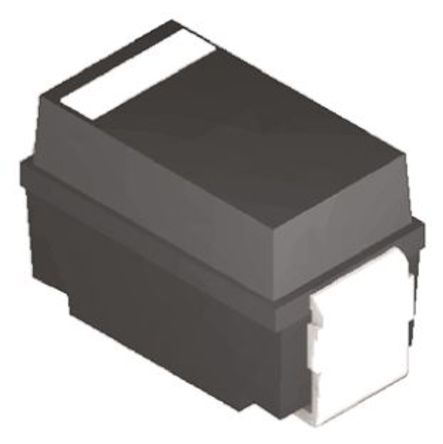

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BZG03C15G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW15733921
Category

Zener Diode, Zener
Package

SMA-2
Description

SMA 15V 1.5W
Documentation

Datasheet

BZG03C15G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BZG03C15G Specifications

Attribute	Attribute Value

Part Number	BZG03C15G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW15733921
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMA-2
Voltage Rating (DC)	15.0 V
Capacitance Tolerance	±6 %
Power Rating	1.50 W
Halogen Free Status	Halogen Free
Breakdown Voltage	15.0 V
Number of Positions	2 Position
Forward Voltage	1.2V @500mA
Power Dissipation	1.5 W
Test Current	50 mA
Zener Voltage	15 V
Maximum Forward Voltage (Max)	1.2V @500mA
Input Power (Max)	1.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1500 mW
	expand all
Size-Length	4.32 mm
Size-Width	2.6 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Zener Diodes 1.5W, BZG03C Series, ON Semiconductor
