C1005C0G1H470J050BA - TDK

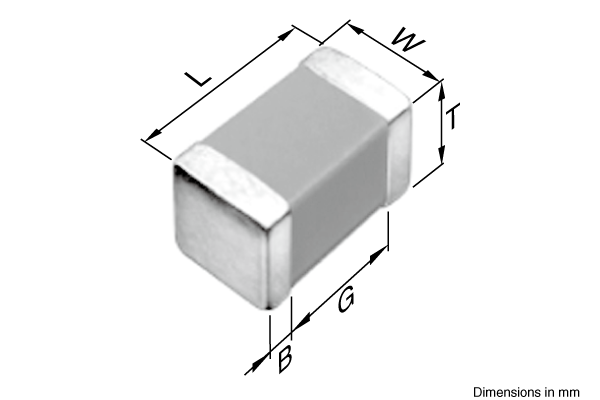

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

C1005C0G1H470J050BA
Manufacturer

TDK
ChipWorker Part#

CW42956166
Category

Ceramic Capacitor
Package

0402
Description

0402 47pF ±5% 50V C0G
Documentation

Datasheet

C1005C0G1H470J050BA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

C1005C0G1H470J050BA Specifications

Attribute	Attribute Value

Part Number	C1005C0G1H470J050BA
Manufacturer	TDK
ChipWorker Part#	CW42956166
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Voltage Rating (DC)	50 V
Insulation Resistance	10 GΩ
Capacitance	47 pF
Capacitance Tolerance	±5 %
Dielectric Characteristic	C0G/NP0
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
	expand all
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.5 mm
Size-Thickness	500 µm
Material	C0G/-55℃~+125℃
Dielectric Material	Ceramic Multilayer
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

47pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
