C3216X7R1E475M160AC - TDK

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

C3216X7R1E475M160AC
Manufacturer

TDK
ChipWorker Part#

CW55245154
Category

Ceramic Capacitor
Package

1206
Description

1206 4.7uF ±20% 25V X7R
Documentation

Datasheet

C3216X7R1E475M160AC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

C3216X7R1E475M160AC Specifications

Attribute	Attribute Value

Part Number	C3216X7R1E475M160AC
Manufacturer	TDK
ChipWorker Part#	CW55245154
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	25 V
Insulation Resistance	10 GΩ
Capacitance	4.7 µF
Capacitance Tolerance	±20 %
Dielectric Characteristic	X7R
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	expand all

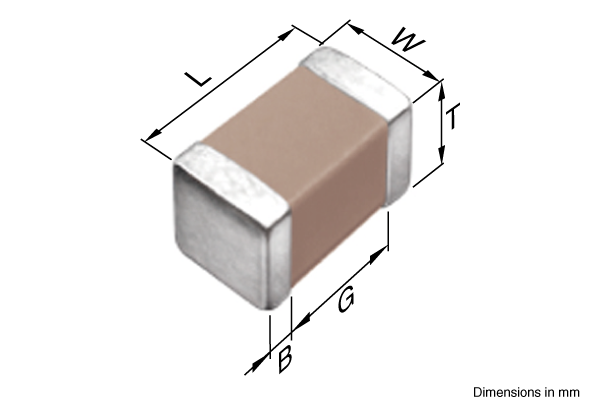

Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	1.6 mm
Size-Thickness	1.6 mm
Material	X7R/-55℃~+125℃
Dielectric Material	Ceramic Multilayer
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

4.7µF ±20% 25V Ceramic Capacitor X7R 1206 (3216 Metric)
