C322C223K1R5TA - KEMET Corporation

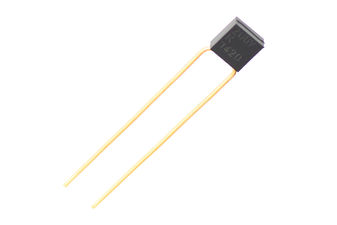

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoC322C223K1R5TA
-
ManufacturerKEMET Corporation
-
ChipWorker Part#CW40259959
-
CategoryCeramic Capacitor
-
PackageRadial
-
Description22nF ±10% 100V X7R
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
C322C223K1R5TA Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
C322C223K1R5TA Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | C322C223K1R5TA |
| Manufacturer | KEMET Corporation |
| ChipWorker Part# | CW40259959 |
| Category | Ceramic Capacitor |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial |
| Pin Pitch | 5.08 mm |
| Voltage Rating (DC) | 100 V |
| Capacitance | 22000 pF |
| Capacitance Tolerance | ±10 % |
| Dielectric Characteristic | X7R |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 100 V |
| expand all | |
| Size-Length | 5.08 mm |
| Size-Width | 5.08 mm |
| Size-Height | 6.6 mm |
| Lead Length | 7.00 mm |
| Material | X7R/-55℃~+125℃ |
| Operating Temperature | -55℃ ~ 125℃ |
| Temperature Coefficient | ±15 % |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8532240060 |
| ECCN Code | EAR99 |
Product Description
- The Kemet C322 series are radial leaded, standard Goldmax multilayer ceramic capacitor with X7R dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.
- Capacitance value ranges from 10pF to 10µF
- Rated DC voltage of 25V, 50V, 100V, 200V, 250V, 500V, 1KV, 1.5KV and 2KV
- K (±10%), M (±20%), P (0, -100%), Z (-20, +80%) tolerance
- 100% matte tin (Sn) with nickel (Ni) plating on steel core
- Dimension is 5.08mm x 6.60mm (L x H)
- 5.08mm pitch spacing
- Epoxy encapsulated
