CC0805KRX7R9BB104 ,Ceramic Capacitor - Yageo

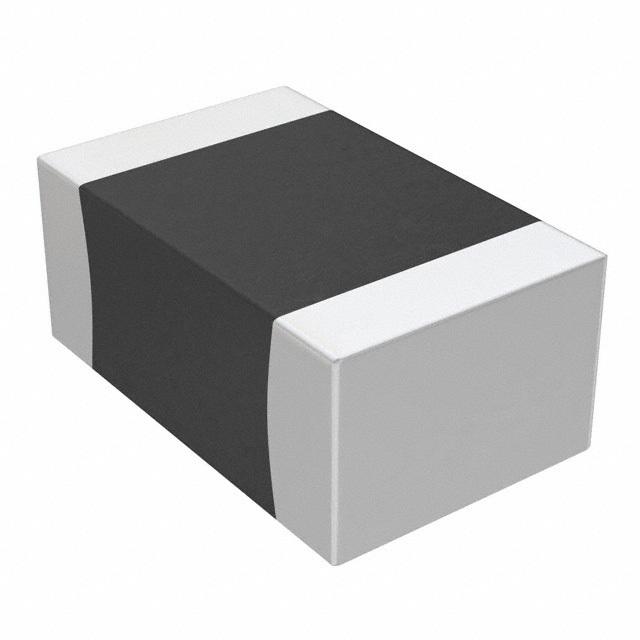

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

369 points

Part No

CC0805KRX7R9BB104
Manufacturer

Yageo
ChipWorker Part#

CW14700
Category

Ceramic Capacitor
Package

0805
Description

0805 100nF ±10% 50V X7R
Documentation

Datasheet
Ships from

Moscow
Наличие

13643540 pcs In Stock
Estimated Price

$ 0.02

Buy CC0805KRX7R9BB104

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CC0805KRX7R9BB104 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CC0805KRX7R9BB104 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CC0805KRX7R9BB104
Manufacturer	Yageo
ChipWorker Part#	CW14700
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Voltage Rating (DC)	50 V
Operating Voltage	50 V
Insulation Resistance	10 GΩ
Capacitance	0.1 µF
Capacitance Tolerance	±10 %
Halogen Free Status	Halogen Free
Dielectric Characteristic	X7R
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±10 %
Voltage Rating	50 V
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.85 mm
Material	X7R/-55℃~+125℃
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±15 %
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The Yageo CC series capacitors are Multilayer Ceramic Chip Capacitors (MLCC) with Class 2, X7R dielectric material used for general purpose applications. These capacitors consist of a rectangular block of ceramic dielectric materials that contains number of interleaved metal electrodes. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and covered with a layer of plated tin (NiSn).
Ultra small ceramic capacitors with larger capacitance value
Capacitance value ranging from 100pF to 22µF
0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available
DC voltage rating of 6.3V to 50V
High temperature range of -55°C to 125°C
Nickel barrier end termination
Good reliability with qualification of IEC60068
Available in ±5%, ±10% and ±20% tolerance
