CC1310F128RGZT - TI

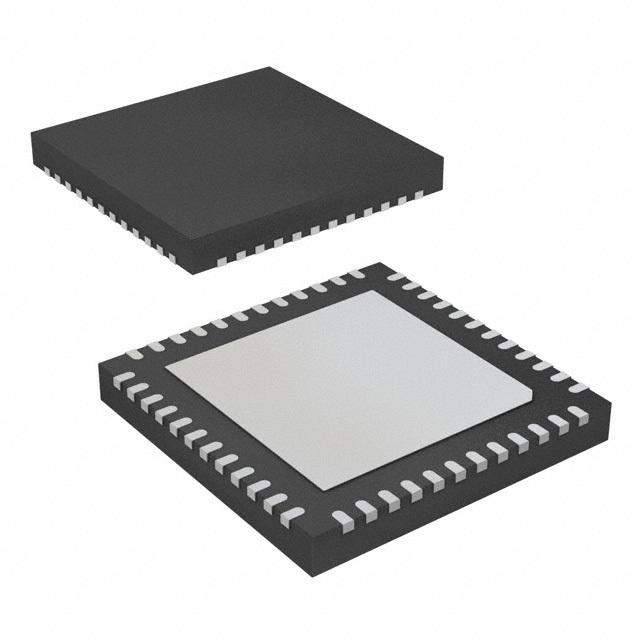

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CC1310F128RGZT
Manufacturer

TI
ChipWorker Part#

CW3793626
Category

Active Chip
Package

VQFN-48
Description

MCU 16Bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 48Pin VQFN EP T/R
Documentation

Datasheet

CC1310F128RGZT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CC1310F128RGZT Specifications

Attribute	Attribute Value

Part Number	CC1310F128RGZT
Manufacturer	TI
ChipWorker Part#	CW3793626
Category	Active Chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Frequency	300MHz ~ 930MHz
Number of Positions	48 Position
Clock Speed	48.0 MHz
RAM Memory Size	20 KB
FLASH Memory Size	131072 B
Output Power	14 dBm
Number of ADCs	1 ADC
Number of Inputs and Outputs	30 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.8V
Supply Voltage (Max)	3.8 V
Supply Voltage (Min)	1.8 V
	expand all
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The CC1310F128RGZT is a SimpleLink™ Sub-1 GHz ultra-low power Wireless Microcontroller. The device combines a flexible, very low power RF transceiver with a powerful 48MHz CortexM3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultralow power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC to DC converter. Sensors can be handled in a very low-power manner by a dedicated autonomous ultralow power MCU that can be configured to handle analog and digital sensors; thus the main MCU (Cortex-M3) is able to maximize sleep time.
EEMBC CoreMark® Score - 142
EEMBC ULPBench™ Score - 158
Ultralow power sensor controller
Efficient code-size architecture, placing TI-RTOS, drivers and bootloader in ROM
All digital peripheral pins can be routed to any GPIO
Four general-purpose timer modules (eight 16-bit or four 32-bit timers, PWM each)
12-bit 200ksps ADC
Continuous time comparator
Ultralow power clocked comparator
Programmable current source
Real-time clock (RTC)
AES-128 Security module
True random number generator (TRNG)
Support for eight capacitive sensing buttons
Integrated temperature sensor
On-chip internal DC to DC converter
Very few external components
Seamless integration with the simpleLink CC1190 range extender
Excellent receiver sensitivity -124dBm using long-range mode, -110dBm at 50kbps
52dB Excellent selectivity
