CC2530F256RHAT - TI

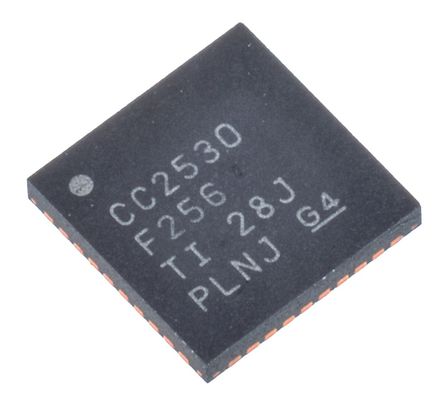

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CC2530F256RHAT
Manufacturer

TI
ChipWorker Part#

CW1981000
Category

RF Module
Package

VQFN-40
Description

MCU 8Bit 8051 CISC 256KB Flash 2.5V/3.3V 40Pin VQFN EP T/R
Documentation

Datasheet

CC2530F256RHAT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CC2530F256RHAT Specifications

Attribute	Attribute Value

Part Number	CC2530F256RHAT
Manufacturer	TI
ChipWorker Part#	CW1981000
Category	RF Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	VQFN-40
Frequency	2.4 GHz
Supply Voltage (DC)	2.00V (min)
Clock Speed	24.0 MHz
RAM Memory Size	8 KB
Data Rate	250 kbps
Output Power	4.5 dBm
Number of UARTs	1 UART
Standby Current	400 nA
Antenna Connection	Differential
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	5A992.c
HK STC License	NLR

Product Description

The CC2530F256RHAT is a second generation true System-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8kB RAM and many other powerful features. The SoC comes with 256kB of flash memory and has various operating modes, making it highly suited for systems where ultralow-power consumption is required. Short transition times between operating modes further ensure low energy consumption. Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the SoC provides a robust and complete ZigBee solution.
2.4GHz IEEE 802.15.4 Compliant RF transceiver
Excellent receiver sensitivity and robustness to interference
Very few external components
Only a single crystal needed for asynchronous networks
8kB RAM with retention in all power modes
Hardware debug support
Powerful five-channel DMA
Integrated high-performance op-amp and ultralow-power comparator
IR generation circuitry
AES Security coprocessor
Two powerful USARTs with support for several serial protocols
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.
