CD74HCT374E - TI

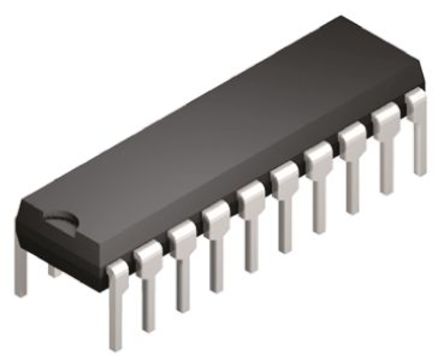

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CD74HCT374E
Manufacturer

TI
ChipWorker Part#

CW5522075
Category

Flip Flop IC
Package

DIP-20
Description

TEXAS INSTRUMENTS CD74HCT374E Flip-Flop, Tri State Non Inverted, Positive Edge, 74HCT374, D, 15ns, 60MHz, 6mA, DIP
Documentation

Datasheet

CD74HCT374E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CD74HCT374E Specifications

Attribute	Attribute Value

Part Number	CD74HCT374E
Manufacturer	TI
ChipWorker Part#	CW5522075
Category	Flip Flop IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Frequency	60 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Outputs	8 Output
Output Current	6 mA
Number of Circuits	8 Circuit
Number of Positions	20 Position
Clock Speed	60 MHz
Number of Bits	8 Bit
Polarity	Non-Inverting
Input Capacitance	10 pF
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	24.33 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Description
The ’HC374, ’HCT374, ’HC574, and ’HCT574 are octal D-type flip-flops with 3-state outputs and the capability to drive 15 LSTTL loads. The eight edge-triggered flip-flops enter data into their registers on the LOW to HIGH transition of clock (CP). The output enable (OE) controls the 3-state outputs and is independent of the register operation. When OE is HIGH, the outputs are in the high-impedance state. The 374 and 574 are identical in function and differ only in their pinout arrangements.
Features
• Buffered Inputs
• Common Three-State Output Enable Control
• Three-State Outputs
• Bus Line Driving Capability
• Typical Propagation Delay (Clock to Q) = 15ns at VCC= 5V, CL= 15pF, TA= 25oC
• Fanout (Over Temperature Range)
\- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
\- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
\- 2-V to 6-V Operation
\- High Noise Immunity: NIL= 30%, NIH= 30% of VCC at VCC= 5V
• HCT Types
\- 4.5-V to 5.5-V Operation
\- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH= 2V (Min)
\- CMOS Input Compatibility, Il ≤1µA at VOL, VOH
