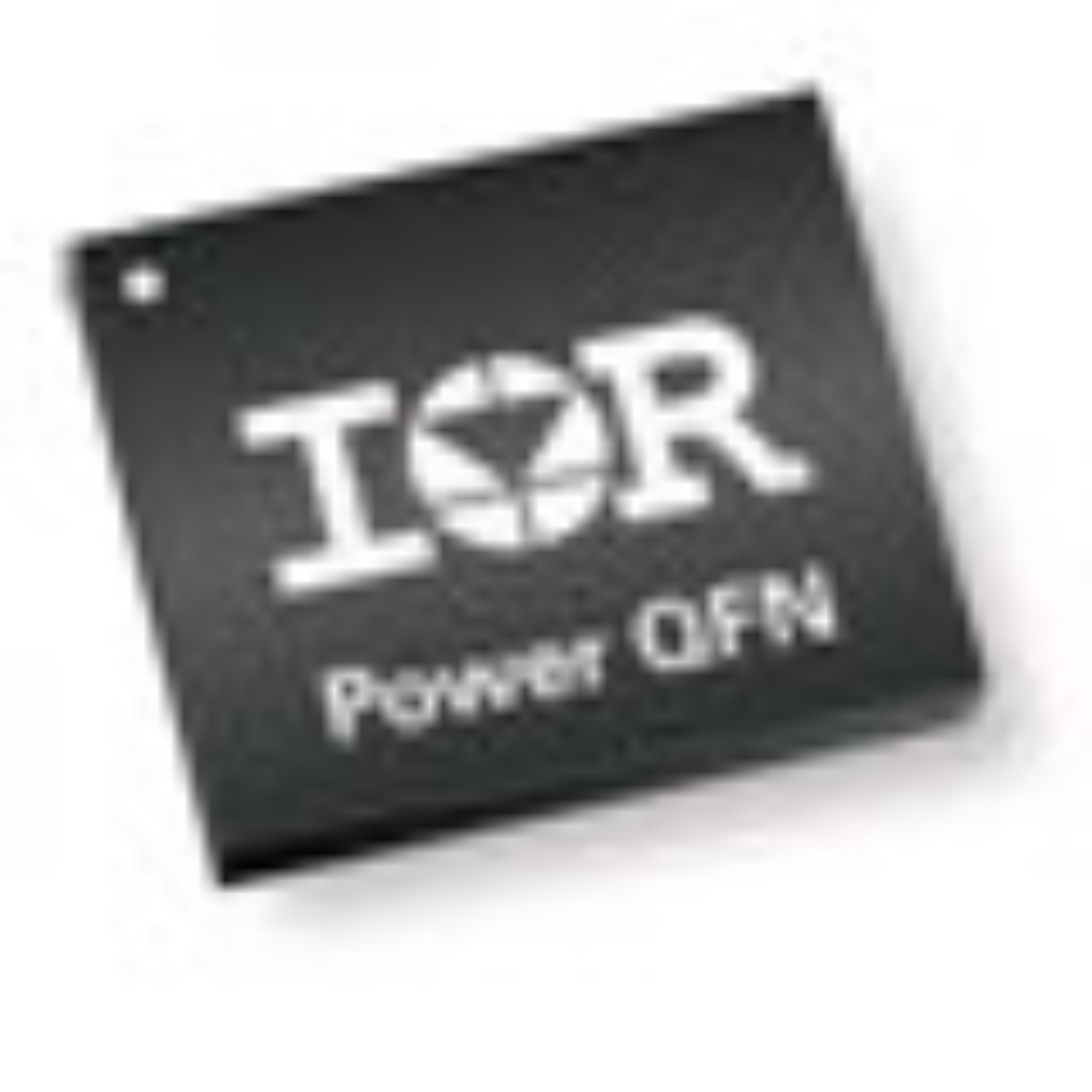

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CHL8510CRT
Manufacturer

Infineon
ChipWorker Part#

CW38836221
Package

DFN-10
Description

Driver 6A 2Out Hi/Lo Side 10Pin DFN EP T/R
Documentation

Datasheet

CHL8510CRT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CHL8510CRT Specifications

Attribute	Attribute Value

Part Number	CHL8510CRT
Manufacturer	Infineon
ChipWorker Part#	CW38836221
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	DFN-10
Rise/Fall Time	21ns, 18ns
Number of Outputs	2 Output
Output Current	4 A
Number of Positions	10 Position
Quiescent Current	5 mA
Rise Time	21 ns
Fall Time	18 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10.8V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	0℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Benefits:
Drives both high-side and low-side MOSFETs in a synchronous buck configuration
Large drivers designed to drive 6nF server class FETs
Low side driver - 4A source / 6A sink
High side driver - 3A source / 4A sink
Transitions times and Propagation delays < 10ns
Independent variable gate voltage for both high and low side drivers from 4.5V to 13.2V
Improves efficiency
Compatible with CHiL controller VGD feature
Integrated bootstrap diode
Reduces external component count
Capable of high switching frequencies from 200kHz up to greater than 1MHz
Configurable PWM modes of operation
CHiL Active Tri-Level (ATL), disables both MOSFETs in 30ns with no hold-off time
Generic tristate PWM with hold-off
Adaptive non-overlap protection minimizes diode conduction time
