CNY64 - VISHAY

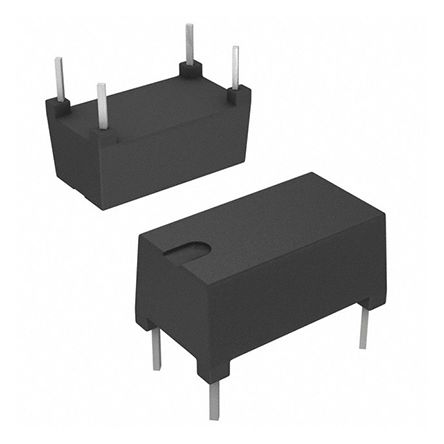

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CNY64
Manufacturer

VISHAY
ChipWorker Part#

CW10036147
Category

Optocoupler, Optoisolator
Package

DIP-4
Description

Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 75mA, 8.2kV, 50%
Documentation

Datasheet

CNY64 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CNY64 Specifications

Attribute	Attribute Value

Part Number	CNY64
Manufacturer	VISHAY
ChipWorker Part#	CW10036147
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Voltage Rating (DC)	5.00 V
Power Rating	0.25 W
Output Voltage	32.0 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.6 V
Input Current	75 mA
Power Dissipation	0.25 W
Rise Time	0.0024 ms
Isolation Voltage	8.2 kV
Forward Current	75 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	75 mA
Fall Time	2.7 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	12.8 mm
Size-Width	7.2 mm
Size-Height	6 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The CNY64 is a 1-channel 4-pin Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. The single components are mounted opposite one another, providing a distance between input and output for highest safety requirements of >3mm. It is suitable for line receiver and microprocessor system interface.
