CPC3703CTR - IXYS Semiconductor

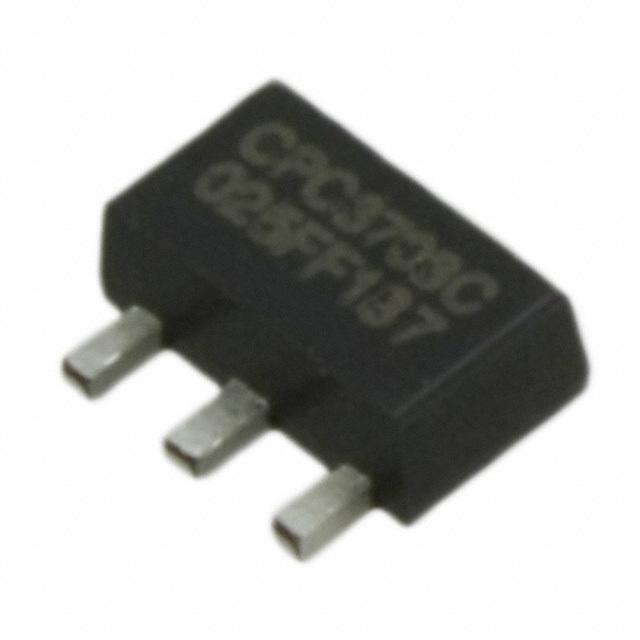

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CPC3703CTR
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW11694400
Category

MOSFET, MOSFET Transistor
Package

SOT-89-3
Description

SOT-89 N-CH 250V
Documentation

Datasheet

CPC3703CTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CPC3703CTR Specifications

Attribute	Attribute Value

Part Number	CPC3703CTR
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW11694400
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-89-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	4 Ω
Polarity	N-CH
Power Dissipation	1.6 W
Drain to Source Voltage (Vds)	250 V
Breakdown Voltage (Drain to Source)	250 V
Rise Time	8 ns
Input Capacitance (Ciss)	350pF @25V(Vds)
Input Power (Max)	1.6 W
Fall Time	70 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1.1W (Ta)
	expand all
Material	Silicon
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 250V 360mA (Ta) 1.1W (Ta) Surface Mount SOT-89-3

expand all
