CSD16407Q5C - TI

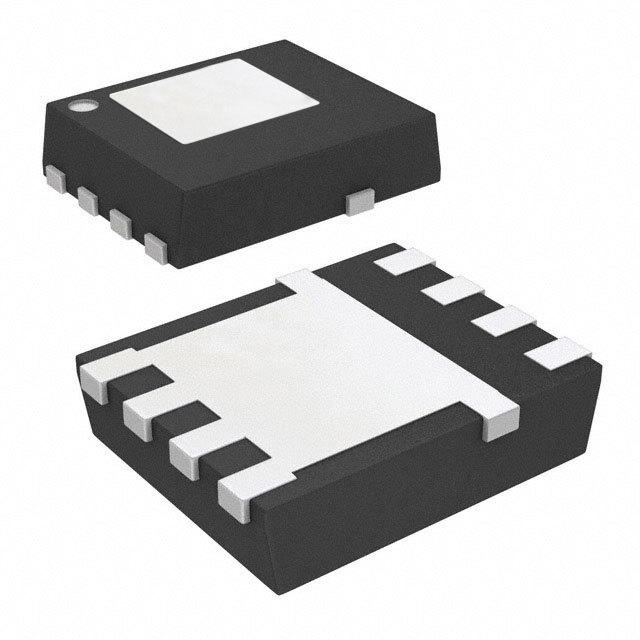

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CSD16407Q5C
Manufacturer

TI
ChipWorker Part#

CW24411266
Category

MOSFET, MOSFET Transistor
Package

8-VSON-CLIP
Description

VSON-CLIP N-CH 25V 31A
Documentation

Datasheet

CSD16407Q5C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CSD16407Q5C Specifications

Attribute	Attribute Value

Part Number	CSD16407Q5C
Manufacturer	TI
ChipWorker Part#	CW24411266
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	8-VSON-CLIP
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.0018 Ω
Polarity	N-Channel
Power Dissipation	3.1 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	100 A
Rise Time	18.4 ns
Input Capacitance (Ciss)	2660pF @12.5V(Vds)
Input Power (Max)	3.1 W
Fall Time	9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1W (Ta)
	expand all
Size-Width	5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The NexFET power MOSFET has been designed to minimize losses in power conversion applications.
Ultralow Qg and Qgd
DualCool Package
Optimized for Two Sided Cooling
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5-mm × 6-mm Plastic Package
APPLICATIONS
Point-of-Load Synchronous Buck Converter for Applications in
Networking, Telecom and Computing Systems
Optimized for Synchronous FET Applications
DualCool, NexFET are trademarks of Texas Instruments.
