CSNS300F - Honeywell

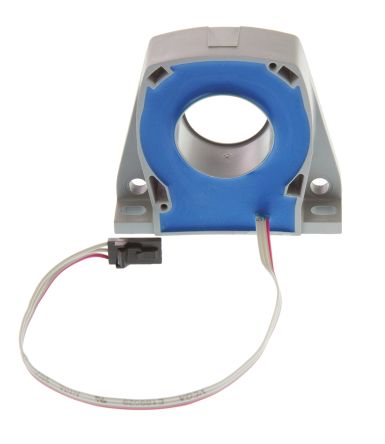

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CSNS300F
Manufacturer

Honeywell
ChipWorker Part#

CW10322263
Category

Sensor, Acceleration
Package

*
Description

Closed Loop Current Sensor AC-DC Current 15V 3Pin
Documentation

Datasheet

CSNS300F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CSNS300F Specifications

Attribute	Attribute Value

Part Number	CSNS300F
Manufacturer	Honeywell
ChipWorker Part#	CW10322263
Category	Sensor, Acceleration
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	*
Current Rating	300 A
Output Current	150 mA
Number of Channels	1 Channel
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Supply Voltage	15 V
	expand all
Size-Width	67.5 mm
Size-Height	61.2 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99

Product Description

**CSNS300 Sensors**
Flexible alternative to the current shunt or transformers for the isolated measurement of a.c. or d.c. currents. Based on the principle of Hall effect and null balance method.
