CT2520DB26000C0FZZA1 - Kyocera

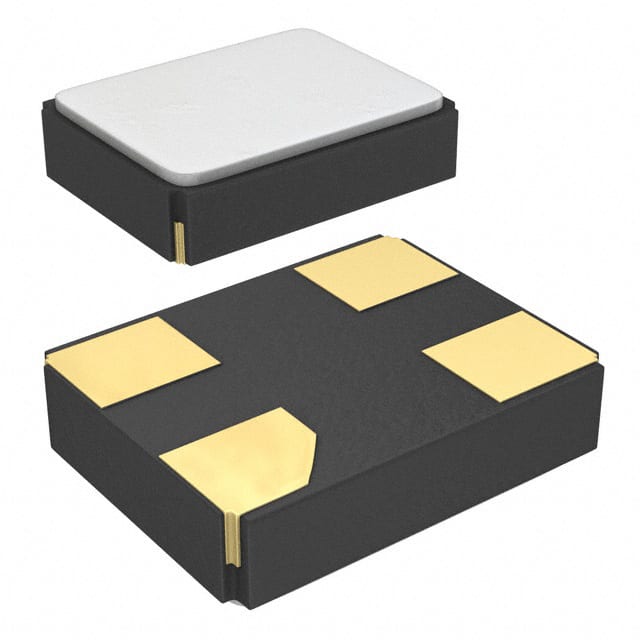

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CT2520DB26000C0FZZA1
Manufacturer

Kyocera
ChipWorker Part#

CW7074844
Category

Crystal
Package

2.5 mm x 2mm
Description

Crystal 26MHz ±10ppm (Tol) ±10ppm (Stability) 7pF FUND 30Ω 4Pin SMD T/R
Documentation

Datasheet

CT2520DB26000C0FZZA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CT2520DB26000C0FZZA1 Specifications

Attribute	Attribute Value

Part Number	CT2520DB26000C0FZZA1
Manufacturer	Kyocera
ChipWorker Part#	CW7074844
Category	Crystal
Documentation	Datasheet
Number of Pins	4 Pin
Case/Package	2.5 mm x 2mm
Frequency	26 MHz
Frequency Stability	±12 ppm
Load Capacitance	7 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
	expand all
Size-Length	2.5 mm
Size-Width	2 mm
Size-Height	0.95 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

26MHz ±10ppm Crystal 7pF 30 Ohms 4-SMD, No Lead
