DA2J10700L - Panasonic

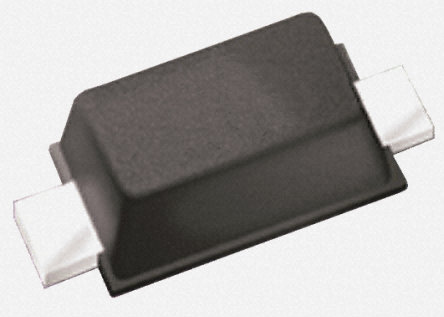

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DA2J10700L
Manufacturer

Panasonic
ChipWorker Part#

CW41454529
Category

TVS Diode
Package

SMini2-F5-B
Description

Rectifier Diode, 1Element, 0.1A, 300V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, SMINI2-F5-B, SC-90A, 2Pin
Documentation

Datasheet

DA2J10700L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DA2J10700L Specifications

Attribute	Attribute Value

Part Number	DA2J10700L
Manufacturer	Panasonic
ChipWorker Part#	CW41454529
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMini2-F5-B
Forward Voltage	1.2V @100mA
Reverse recovery time	60 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	225 mA
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	100 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	40 ℃
Junction Temperature	150℃ (Max)
	expand all
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Diode Standard 300V 100mA Surface Mount SMini2-F5-B
