DAC8552IDGKR - TI

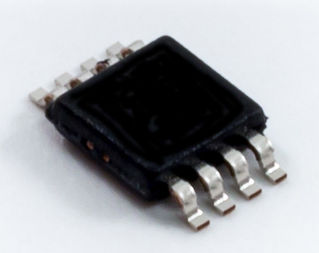

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DAC8552IDGKR
Manufacturer

TI
ChipWorker Part#

CW393600
Category

Digital to Analog, DAC IC
Package

VSSOP-8
Description

TEXAS INSTRUMENTS DAC8552IDGKR Digital to Analog Converter, 16Bit, 200KSPS, Serial, 2.7V to 5.5V, SOP, 8Pins
Documentation

Datasheet

DAC8552IDGKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DAC8552IDGKR Specifications

Attribute	Attribute Value

Part Number	DAC8552IDGKR
Manufacturer	TI
ChipWorker Part#	CW393600
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	340 µA
Number of Bits	16 Bit
Sample Rate	200 ksps
Power Consumption	3.00 mW
Thermal Shutdown	No
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	2 DAC
Supply Voltage	2.7V ~ 5.5V
	expand all
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The DAC8552 is a 16-bit, dual channel, voltage output digital-to-analog converter (DAC) offering low power operation and a flexible serial host interface. Each on-chip precision output amplifier allows rail-to-rail output swing to be achieved over the supply range of 2.7V to 5.5V. The device supports a standard 3-wire serial interface capable of operating with input data clock frequencies up to 30MHz for VDD = 5V.
The DAC8552 requires an external reference voltage to set the output range of each DAC channel. Also incorporated into the device is a power-on reset circuit which ensures that the DAC outputs power up at zero-scale and remain there until a valid write takes place. The DAC8552 provides a flexible power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 700nA at 5V.
The low-power consumption of this device in normal operation makes it ideally suited for portable, battery-operated equipment and other low-power applications. The power consumption is 0.5mW per channel at 2.7V, reducing to 1µW in power-down mode.
The DAC8552 is available in a MSOP-8 package with a specified operating temperature range of -40°C to +105°C.
