DB2J20100L - Panasonic

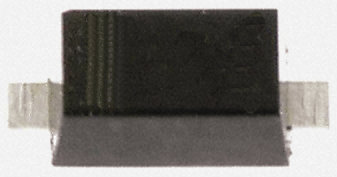

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DB2J20100L
Manufacturer

Panasonic
ChipWorker Part#

CW34328865
Category

Schottky Diode
Package

SMini2-F5-B
Description

DB2J20100L, SMT Schottky Diode, 20V 500mA, 4.3ns, 2Pin SMini2 F5 B
Documentation

Datasheet

DB2J20100L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DB2J20100L Specifications

Attribute	Attribute Value

Part Number	DB2J20100L
Manufacturer	Panasonic
ChipWorker Part#	CW34328865
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMini2-F5-B
Number of Positions	2 Position
Forward Voltage	0.55 V
Reverse recovery time	4.3 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	3 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	125℃ (Max)
	expand all
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Diode Schottky 20V 500mA Surface Mount SMini2-F5-B
