DB2J50100L - Panasonic

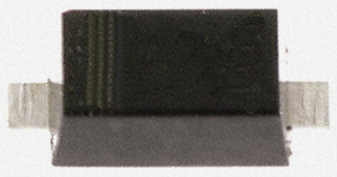

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DB2J50100L
Manufacturer

Panasonic
ChipWorker Part#

CW12705257
Category

Schottky Diode
Package

SMini2-F5-B
Description

PANASONIC ELECTRONIC COMPONENTS DB2J50100L Small Signal Schottky Diode, Single, 50V, 200mA, 550mV, 1A, 125℃
Documentation

Datasheet

DB2J50100L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DB2J50100L Specifications

Attribute	Attribute Value

Part Number	DB2J50100L
Manufacturer	Panasonic
ChipWorker Part#	CW12705257
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMini2-F5-B
Load Current	200 mA
Number of Positions	2 Position
Forward Voltage	0.55 V
Reverse recovery time	1.6 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	125℃ (Max)
	expand all
Size-Length	1.7 mm
Size-Width	1.25 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Diode Schottky 50V 200mA Surface Mount SMini2-F5-B
