DB2S31600L - Panasonic

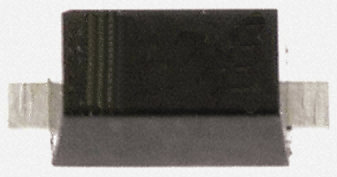

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DB2S31600L
Manufacturer

Panasonic
ChipWorker Part#

CW19391467
Category

Schottky Diode
Package

SSMini2-F5-B
Description

DB2S31600L, SMT Schottky Small Signal Diode, 30V 100mA, 0.8ns, 2Pin SSMini2 F5 B
Documentation

Datasheet

DB2S31600L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DB2S31600L Specifications

Attribute	Attribute Value

Part Number	DB2S31600L
Manufacturer	Panasonic
ChipWorker Part#	CW19391467
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SSMini2-F5-B
Forward Voltage	550mV @100mA
Reverse recovery time	800 ps
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	125℃ (Max)
	expand all
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Diode Schottky 30V 100mA Surface Mount SSMini2-F5-B
