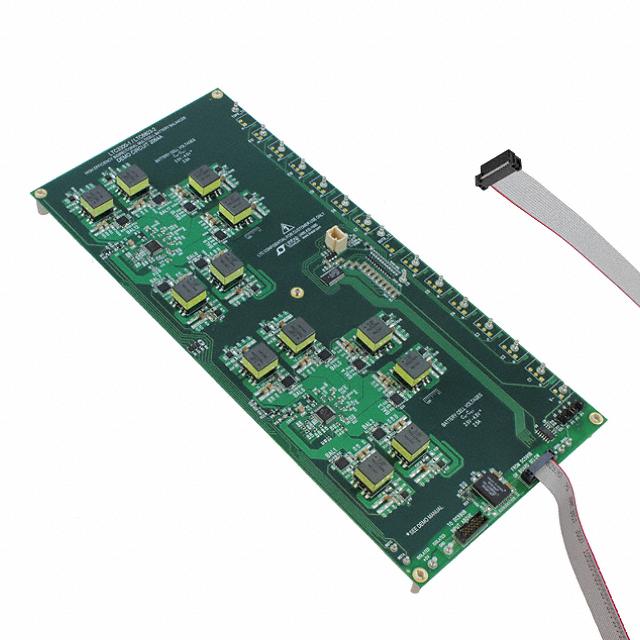

DC2064A - Linear Technology

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DC2064A
Manufacturer

Linear Technology
ChipWorker Part#

CW77416696
Category

Microprocessor Development Kit
Description

LINEAR TECHNOLOGY DC2064A Demonstration Board, Power Management, Battery Monitor, LTC3300-1, LTC6803-2
Documentation

Datasheet

DC2064A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DC2064A Specifications

Attribute	Attribute Value

Part Number	DC2064A
Manufacturer	Linear Technology
ChipWorker Part#	CW77416696
Category	Microprocessor Development Kit
Documentation	Datasheet
Input Voltage	2.5VDC ~ 4.5VDC, 3.2VDC ~ 4.5VDC
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The DC2064A is a Demonstration Board for bidirectional cell balancer using two LTC®3300-1 ICs to achieve active cell balancing of up to 12 Li-Ion batteries. The board uses the LTC6803-2 multi-cell addressable battery stack monitor to measure cell voltages and two LTC3300-1 ICs to provide active cell balancing. The demonstration circuit uses a two window GUI developed for the board. One window is a modified version of the GUI for the LTC6803-2 and also contains a tab to control the LTC3300-1 ICs through the DC590B USB Serial controller and the second window L, LT, LTC and LTM. Performance summary board photo reports the status of the LTC3300-1 devices. All the functions of the LTC6803-2 GUI are supported except that cell balancing is achieved through the LTC3300-1 ICs by transferring charge from one to six batteries per LTC3300-1 to the stack or from the stack to one to six batteries per LTC3300-1.
