DCP010512DBP - TI

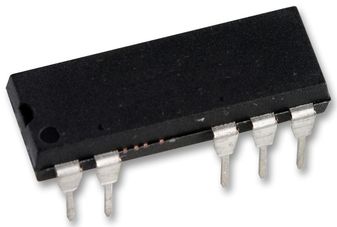

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoDCP010512DBP
-
ManufacturerTI
-
ChipWorker Part#CW6539109
-
CategoryDC to DC Converter
-
PackageDIP-14
-
DescriptionModule DC-DC 5Vin 2Out 12V/-12V 0.041A/0.04A 0.97W 7Pin PDIP Tube
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
DCP010512DBP Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
DCP010512DBP Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | DCP010512DBP |
| Manufacturer | TI |
| ChipWorker Part# | CW6539109 |
| Category | DC to DC Converter |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | DIP-14 |
| Frequency | 800 kHz |
| Supply Voltage (DC) | 5.50V (max) |
| Power Rating | 1 W |
| Number of Outputs | 2 Output |
| Output Voltage | 12 V |
| Output Current | 41 mA |
| Number of Positions | 14 Position |
| Quiescent Current | 40.0 mA |
| Number of Regulated Outputs | 2 Output |
| Output Power | 1 W |
| Isolation Voltage | 1 kV |
| Switching Frequency | 800 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 4.5 V |
| Output Current (Max) | 42mA, 42mA |
| Input Power (Max) | 0.97 W |
| Input Power (Max) | 960 mW |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 5.5V |
| expand all | |
| Size-Length | 19.18 mm |
| Size-Width | 6.61 mm |
| Size-Height | 3.94 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- DESCRIPTION
- The DCP01B series is a family of 1W, unregulated, isolated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP01B series provides extra features such as output disable and synchronization of switching frequencies.
- FEATURES
- Up To 85% Efficiency
- Thermal Protection
- Device-to-Device Synchronization
- Short-Circuit Protection
- EN55022 Class B EMC Performance
- UL1950 Recognized Component
- JEDEC DIP-14 and SOP-14 Packages
- APPLICATIONS
- Point-of-Use Power Conversion
- Ground Loop Elimination
- Data Acquisition
- Industrial Control and Instrumentation
- Test Equipment
