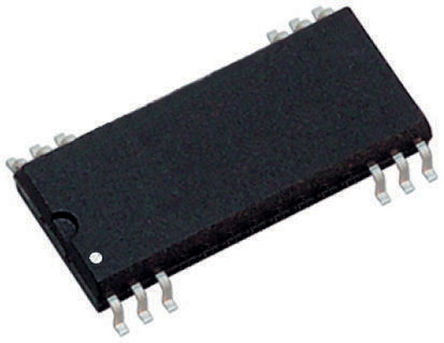

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DCP020505UE4
Manufacturer

TI
ChipWorker Part#

CW92575796
Category

DC to DC Converter
Package

SOP-12
Description

Isolated Board Mount DC-DC Converter, Surface Mount DIP, Fixed, Through Hole, 2W, 5V, 400mA
Documentation

Datasheet

DCP020505UE4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DCP020505UE4 Specifications

Attribute	Attribute Value

Part Number	DCP020505UE4
Manufacturer	TI
ChipWorker Part#	CW92575796
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	SOP-12
Frequency	800 kHz
Supply Voltage (DC)	5.00 V
Power Rating	2 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	5 V
Output Current	0.4 A
Quiescent Current	18.0 mA
Number of Regulated Outputs	1 Output
Isolation Voltage	1 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5 V
Output Voltage (Max)	5 V
Output Current (Max)	400 mA
Input Power (Max)	2 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 5.5V
	expand all
Size-Length	17.9 mm
Size-Width	10.65 mm
Size-Height	2.65 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The DCP020505UE4 is an isolated unregulated DC/DC Converter Module requiring a minimum of external components and including on-chip device protection. The device provides extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the device suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation. It offers up to 2W of isolated, unregulated output power from a 5V input source with a typical efficiency of up to 89%. This efficiency is achieved through highly integrated technology and the implementation of a custom power stage and control device. The circuit design uses an advanced BiCMOS/DMOS process.
Device-to-device synchronization
EN55022 Class-B EMC performance
1kV Operational isolation
This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation.
