DCP022415DU - TI

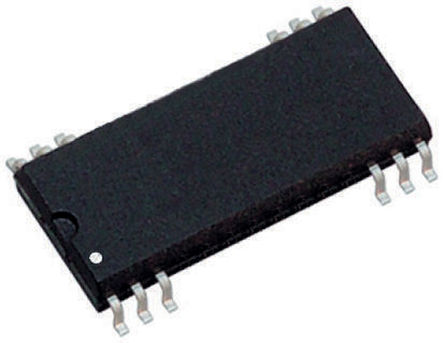

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DCP022415DU
Manufacturer

TI
ChipWorker Part#

CW19500470
Category

DC to DC Converter
Package

SOP-12
Description

Module DC-DC 24Vin 2Out 15V/-15V 0.066A/0.06A 2W 12Pin SOP Tube
Documentation

Datasheet

DCP022415DU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DCP022415DU Specifications

Attribute	Attribute Value

Part Number	DCP022415DU
Manufacturer	TI
ChipWorker Part#	CW19500470
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	SOP-12
Frequency	800 kHz
Power Rating	2 W
Number of Outputs	2 Output
Input Voltage (DC)	21.6V ~ 26.4V
Output Voltage	±15 V
Output Current	0.133 A
Quiescent Current	16.0 mA
Number of Regulated Outputs	2 Output
Output Power	2 W
Isolation Voltage	1 kV
Switching Frequency	400 kHz
Input Voltage (Max)	26.4 V
Input Voltage (Min)	21.6 V
Input Voltage (DC Max)	26.4 V
Input Voltage (DC Min)	21.6 v
Output Voltage (Max)	15 V
Output Current (Max)	67mA, 67mA
Input Power (Max)	2 W
Input Power (Max)	480 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	26.4 V
Supply Voltage (Min)	21.6 V
Input Voltage	21.6V ~ 26.4V
	expand all
Size-Length	17.9 mm
Size-Width	10.65 mm
Size-Height	2.65 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The DCP022415DU is a 2-output 2W board-mount isolated Unregulated DC to DC Converter requiring a minimum of external components and including on-chip device protection. The DCP02 series 2W DC/DC converter provides extra features such as output disable and synchronization of switching frequencies. Combination of features and small sizes makes the DCP02 suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation.
1kV Isolation
Device-to-device synchronization
EN55022 class B EMC performance
It has operational isolation and is intended for signal isolation only.
