DLW43SH510XK2L - muRata

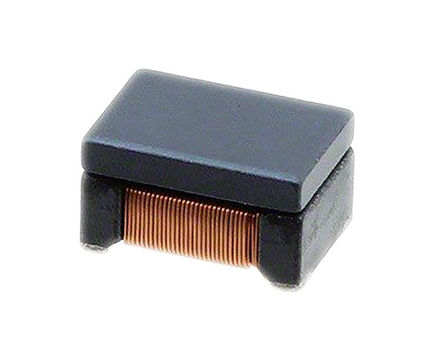

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DLW43SH510XK2L
Manufacturer

muRata
ChipWorker Part#

CW1234304
Category

Inductor Choke
Package

1812
Description

Ind Common Mode Choke Wirewound 51uH -30% to 50% 1MHz 230mA 1812 Embossed Plastic T/R
Documentation

Datasheet

DLW43SH510XK2L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DLW43SH510XK2L Specifications

Attribute	Attribute Value

Part Number	DLW43SH510XK2L
Manufacturer	muRata
ChipWorker Part#	CW1234304
Category	Inductor Choke
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	1812
Voltage Rating (DC)	50 V
Current Rating	230 mA
Inductance	51 µH
Resistance	51 Ω
Test Frequency	100 MHz
Current Rating (Max)	230 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 VDC
Resistance (DC Max)	1 Ω
	expand all
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	2.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

51µH @ 1MHz 2 Line Common Mode Choke Surface Mount 230mA DCR 1Ohm
