DM180021 - Microchip

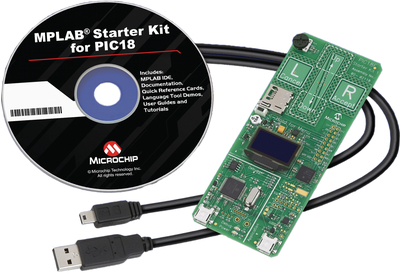

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DM180021
Manufacturer

Microchip
ChipWorker Part#

CW44242669
Category

Microprocessor Primary Platform
Description

PIC18F46J50 Microcontroller Starter Kit 4KB RAM 64KB Flash
Documentation

Datasheet

DM180021 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DM180021 Specifications

Attribute	Attribute Value

Part Number	DM180021
Manufacturer	Microchip
ChipWorker Part#	CW44242669
Category	Microprocessor Primary Platform
Documentation	Datasheet
RAM Memory Size	4 KB
Number of Bits	8 Bit
Core Architecture	PIC
Core Sub-Architecture	PIC18
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The DM180021 is a MPLAB starter kit for PIC18F MCU. The MPLAB starter kit provides an all-in-one solution for debugging and programming applications using Microchip"s own MPLAB integrated development environment (IDE). A USB connection to a host computer supplies communications and power to the board, no additional external power supply is needed. The starter kit includes integrated debug and programmer circuitry that allows applications to be programmed onto the application side of the PIC18F MCU and then debugged, all using MPLAB IDE. The need for an additional programmer or hardware interface has been completely eliminated. The PIC18 starter kit functions as a USB mouse, joystick or mass storage device all using the on-board capacitive touch sense pads. It includes a MicroSD memory card, potentiometer, acceleration sensor and OLED display. This board features the PIC18F46J50 MCU with 64KB flash, 4KB RAM, XLP low power, mTouch touch sensing and USB.
On-board debugger/programming capability
USB communication, Capacitive touch pad, potentiometer
Acceleration sensor, MicroSD memory card and an OLED display
Full speed USB 2.0 (12Mbit/s) interface
32 endpoints (IN/OUT)
Streaming ports available
Internal pull up resistors (D+/D-)
48MHz performance (12 MIPS)
OLED voltage boost circuitry
Soft start circuit
