DSS9HB32E222Q55B - muRata

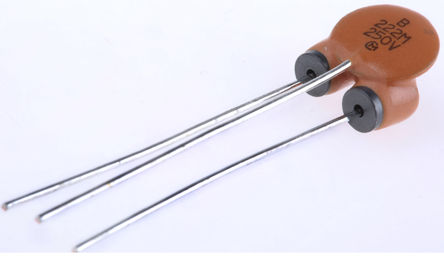

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DSS9HB32E222Q55B
Manufacturer

muRata
ChipWorker Part#

CW91142384
Category

Filter
Description

Cap Three Terminal Capacitor 0.0022uF 250V 20% Radial 105C Bulk
Documentation

Datasheet

DSS9HB32E222Q55B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DSS9HB32E222Q55B Specifications

Attribute	Attribute Value

Part Number	DSS9HB32E222Q55B
Manufacturer	muRata
ChipWorker Part#	CW91142384
Category	Filter
Documentation	Datasheet
Mounting Style	Through Hole
Voltage Rating (DC)	250 V
Current Rating	7 A
Capacitance	2200 pF
Shielding	No
Ripple Current	6000 mA
Current Rating (Max)	6 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	250 VDC
Voltage Rating	250 V
	expand all
Size-Length	12 mm
Size-Width	12 mm
Size-Height	10.5 mm
Lead Length	25.0 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The DSS9HB32E222Q55B is a 2200pF 3-terminal Lead EMIFIL® heavy-duty Capacitor for general electronics equipment.
-40 to 105°C Operating temperature range
Do not use products beyond the rated current and rated voltage as this may create excessive heat and deteriorate the insulation resistance.
