DX07S024JJ2R1300 - JAE Electronics

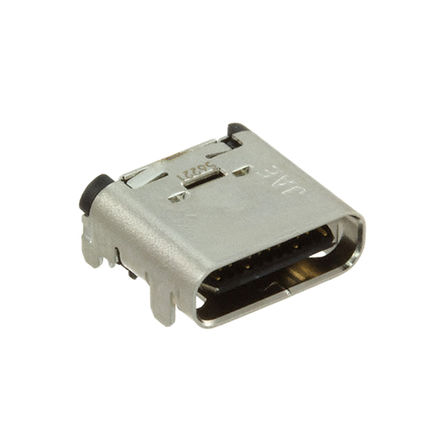

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DX07S024JJ2R1300
Manufacturer

JAE Electronics
ChipWorker Part#

CW783968
Category

Connector
Package

-
Description

USB TYP C TP MNT DL RW SMT RECEP
Documentation

Datasheet

DX07S024JJ2R1300 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DX07S024JJ2R1300 Specifications

Attribute	Attribute Value

Part Number	DX07S024JJ2R1300
Manufacturer	JAE Electronics
ChipWorker Part#	CW783968
Category	Connector
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	-
Number of Contacts	24 Contact
Current Rating	5 A
Insulation Resistance	100 MΩ
Number of Mating Cycles	10000 Cycle
Current Rating (Max)	5 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	20 VAC
Voltage Rating	20 V
Maximum Contact Resistance (Max)	40 mΩ
	expand all
Size-Height	3.14 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
