DZ2406200L - Panasonic

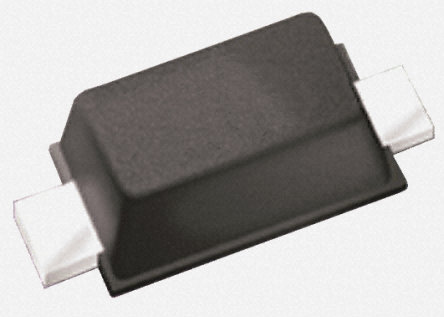

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DZ2406200L
Manufacturer

Panasonic
ChipWorker Part#

CW40003200
Category

Zener Diode, Zener
Package

TMiniP2-F2-B
Description

TMiniP2-F2-B 6.2V 2W
Documentation

Datasheet

DZ2406200L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DZ2406200L Specifications

Attribute	Attribute Value

Part Number	DZ2406200L
Manufacturer	Panasonic
ChipWorker Part#	CW40003200
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	TMiniP2-F2-B
Capacitance Tolerance	±5 %
Number of Positions	2 Position
Forward Voltage	1.2V @200mA
Power Dissipation	2 W
Test Current	10 mA
Zener Voltage	6.2 V
Maximum Forward Voltage (Max)	1.2V @200mA
Input Power (Max)	2 W
Operating Temperature (Max)	85 ℃
Power Dissipation (Max)	2 W
	expand all
Size-Length	3.8 mm
Size-Width	2.4 mm
Size-Height	0.82 mm
Temperature Coefficient	2.2 mV/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The DZ2406200L is a silicon epitaxial planar Zener Diode capability of withstanding a high surge type. It is suitable for constant voltage and surge absorption circuit.
Excellent rising characteristics of Zener current Iz
Low Zener operating resistance Rz
Halogen-free
UL94 V-0 Flammability rating
Level 1 MSL
