DZ2W30000L - Panasonic

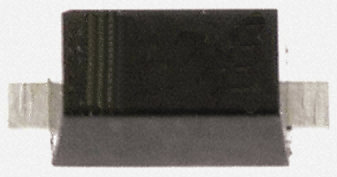

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DZ2W30000L
Manufacturer

Panasonic
ChipWorker Part#

CW40904536
Category

Zener Diode, Zener
Package

Mini2-F3-B
Description

Mini2-F3-B 30V 1W
Documentation

Datasheet

DZ2W30000L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DZ2W30000L Specifications

Attribute	Attribute Value

Part Number	DZ2W30000L
Manufacturer	Panasonic
ChipWorker Part#	CW40904536
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Mini2-F3-B
Capacitance Tolerance	±5 %
Number of Positions	2 Position
Forward Voltage	1.2V @200mA
Power Dissipation	1 W
Test Current	10 mA
Zener Voltage	30 V
Maximum Forward Voltage (Max)	1.2V @200mA
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Power Dissipation (Max)	1 W
	expand all
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Temperature Coefficient	32.5 mV/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Zener Diode 30V 1W ±5% Surface Mount Mini2-F3-B
