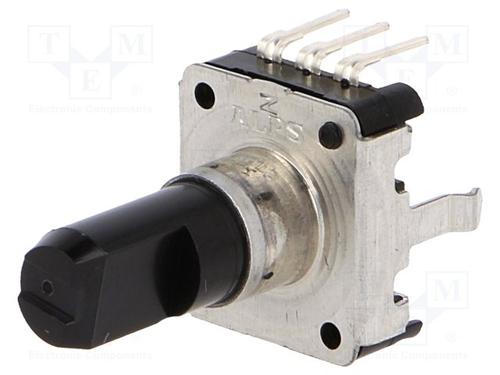

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EC12E24104A6
Manufacturer

ALPS Electric
ChipWorker Part#

CW14953262
Category

Encoder
Package

Through Hole
Description

Mechanical Encoder Rotary Incremental Flat 10mN-m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pins
Documentation

Datasheet

EC12E24104A6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EC12E24104A6 Specifications

Attribute	Attribute Value

Part Number	EC12E24104A6
Manufacturer	ALPS Electric
ChipWorker Part#	CW14953262
Category	Encoder
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Through Hole
Supply Voltage (DC)	5.00V (max)
Operating Voltage	5 VDC
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage (Max)	5 VDC
	expand all
Size-Length	14 mm
Size-Height	20 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

* Incremental（Two phase A and B ）
Single insulated shaft
-10 to +70°C Operating temperature
