EEEFP1E221AP - Panasonic

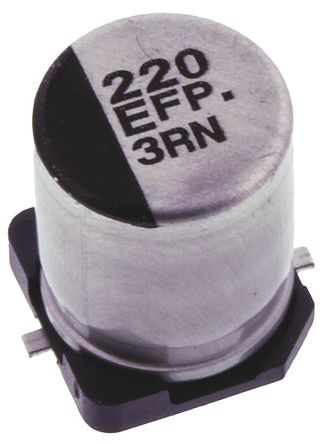

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoEEEFP1E221AP
-
ManufacturerPanasonic
-
ChipWorker Part#CW4418963
-
CategoryAluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
-
PackageSMD
-
Description220mF 25V 850mA Φ8mm 10.2mm
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
EEEFP1E221AP Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
EEEFP1E221AP Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | EEEFP1E221AP |
| Manufacturer | Panasonic |
| ChipWorker Part# | CW4418963 |
| Category | Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Voltage Rating (DC) | 25.0 V |
| Operating Voltage | 25 VDC |
| Capacitance | 220 µF |
| Equivalent Series Resistance (ESR) | 0.08 Ω |
| Capacitance Tolerance | ±20 % |
| Ripple Current | 850 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±20 % |
| Voltage Rating | 25 V |
| expand all | |
| Size-Height | 10.2 mm |
| Size-Diameter | 8.00 mm |
| Dielectric Material | Aluminum Electrolytic |
| Operating Temperature | -55℃ ~ 105℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 500 |
| Life (Hours) | 2000 h |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The Panasonic FP series capacitors are type V surface mount polarized aluminium electrolytic capacitors suitable for high temperature lead free reflow. The capacitance value ranges from 10µF to 1800µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range from 6.3VDC to 50VDC
- ±20% tolerance
- Endurance is 2000h at 105°C
- Operating temperature range -55°C to 105°C
