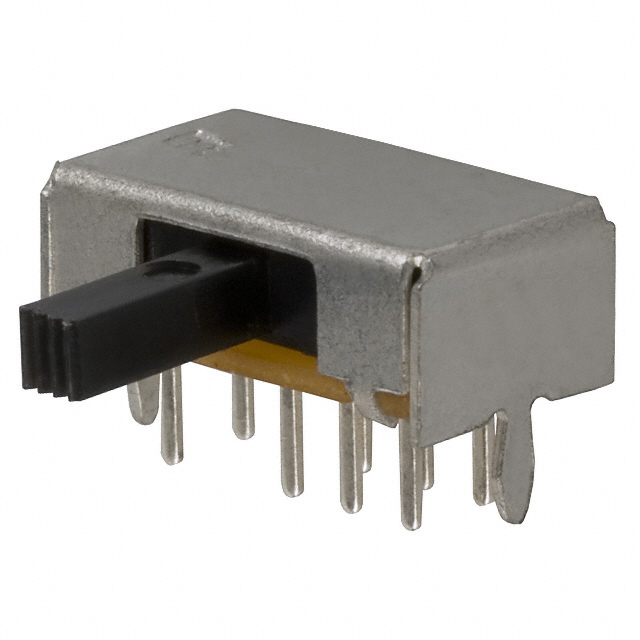

EG2310 - E-Switch

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EG2310
Manufacturer

E-Switch
ChipWorker Part#

CW5692652
Category

Slide Switch, Switch Slide
Package

Through Hole
Description

E-SWITCH EG2310 Slide Switch, DP3T, Through Hole, 200mA
Documentation

Datasheet

EG2310 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EG2310 Specifications

Attribute	Attribute Value

Part Number	EG2310
Manufacturer	E-Switch
ChipWorker Part#	CW5692652
Category	Slide Switch, Switch Slide
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Through Hole
Contact Plating	Silver
Voltage Rating (DC)	30 V
Actuator Type	Standard
Current Rating	200 mA
Insulation Resistance	100 Ω
Orientation	Right Angle
Contacts Type	DP3T
Contact Resistance	20 mΩ
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	30 V
	expand all
Size-Length	12.6 mm
Size-Width	12.8 mm
Size-Height	6 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Switch Slide Side Slide PC Pins Bracket Mount/PCB Through Hole
