EGF1D - ON Semiconductor

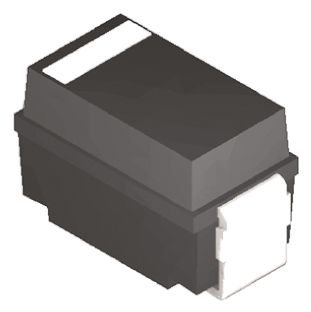

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EGF1D
Manufacturer

ON Semiconductor
ChipWorker Part#

CW8604056
Category

Schottky Diode
Package

DO-214AC
Description

Rectifier Diode, Single, 200V, 1A, 1V, 50ns, 30A
Documentation

Datasheet

EGF1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EGF1D Specifications

Attribute	Attribute Value

Part Number	EGF1D
Manufacturer	ON Semiconductor
ChipWorker Part#	CW8604056
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Forward Voltage	1V @1A
Thermal Resistance	30℃/W (RθJL)
Reverse recovery time	50 ns
Forward Current	1000 mA
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2000 mW
	expand all
Size-Length	4.75 mm
Size-Width	2.95 mm
Size-Height	2.2 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

Features
---
|
Low forward voltage drop.
Low profile package.
Fast switching for high efficiency.
