EP11SD1CBE - C&K Components

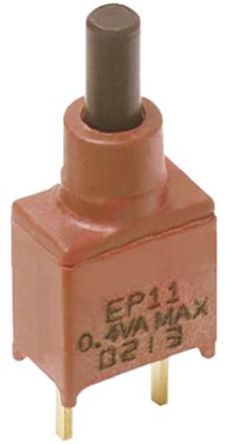

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EP11SD1CBE
Manufacturer

C&K Components
ChipWorker Part#

CW703882
Category

Pushbutton Switch, Switch Push button
Package

Through Hole
Description

Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Documentation

Datasheet

EP11SD1CBE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EP11SD1CBE Specifications

Attribute	Attribute Value

Part Number	EP11SD1CBE
Manufacturer	C&K Components
ChipWorker Part#	CW703882
Category	Pushbutton Switch, Switch Push button
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Current Rating	1 A
Insulation Resistance	100 MΩ
Number of Rows	1 Row
Power Rating	400 mW
Contacts Type	SPST
Number of Positions	2 Position
Contact Resistance	20 mΩ
Contact Current Rating	400mA @20V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<20 mΩ
	expand all
Size-Length	8.13 mm
Size-Width	5.08 mm
Size-Height	18.85 mm
Color	White
Contact Material	Gold
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99

Product Description

The EP series sealed tiny Pushbutton with gold over nickel plated copper alloy contacts and epoxy terminal seal.
Sealed against solder & cleaning processes
Through-hole and surface mount models
Snap-fitting actuator accepts standard caps
