ERG1SJ223 - Panasonic

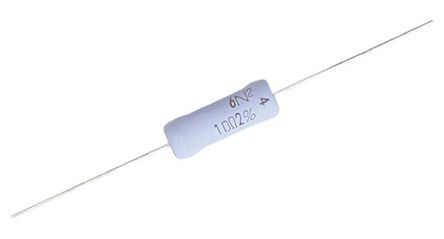

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ERG1SJ223
Manufacturer

Panasonic
ChipWorker Part#

CW97076800
Category

Through-Hole Resistor
Description

5Ω ±5% 1W ±350ppm/℃
Documentation

Datasheet

ERG1SJ223 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ERG1SJ223 Specifications

Attribute	Attribute Value

Part Number	ERG1SJ223
Manufacturer	Panasonic
ChipWorker Part#	CW97076800
Category	Through-Hole Resistor
Documentation	Datasheet
Mounting Style	Through Hole
Voltage Rating (DC)	350 V
Capacitance Tolerance	±5 %
Power Rating	1 W
Part Family	ERG
Resistance	22 kΩ
Resistance Tolerance	±5 %
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	350 V
	expand all
Size-Length	9 mm
Size-Diameter	2.80 mm
Temperature Coefficient	±350 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

RES 22K OHM 1W 5% AXIAL
