ESDLIN1524BJ - ST Microelectronics

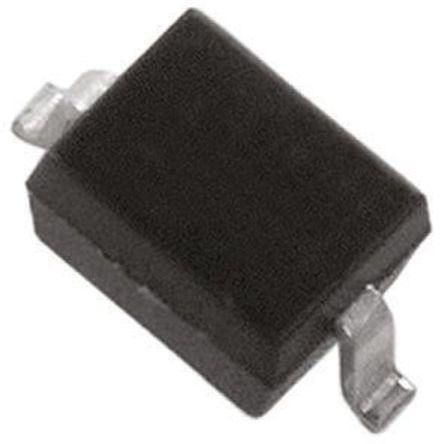

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoESDLIN1524BJ
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW5325504
-
CategoryTVS Diode
-
PackageSOD-323
-
DescriptionTVS DIODE 15V/24V 35V/50V SOD323
-
DocumentationDatasheet
